MATERIAL NUMBER:
8BVP0880HC00.004-1
DESCRIPTION:
- Extensive input voltage range
- Capable of regeneration
- Integrated connection for temperature sensors
- 2 slots for ACOPOSmulti plug-in modules

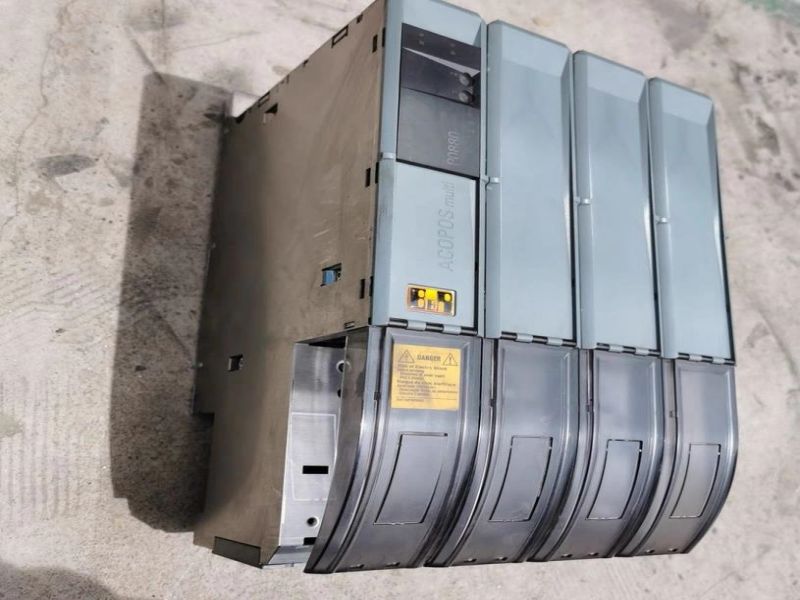

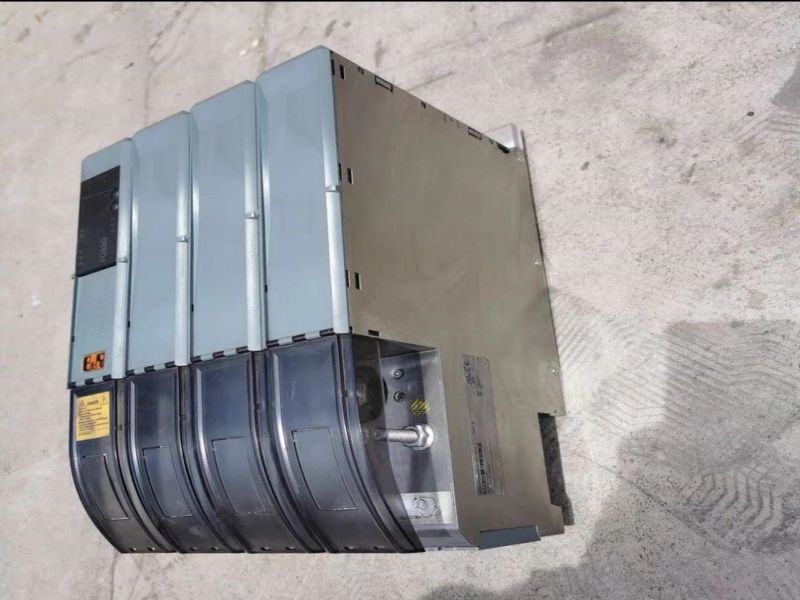

ACOPOSmulti power supply module, 88 A, AS, cold plate or pass-through mounting
General information
| B&R ID code | 0xA6A1 |
| Cooling and mounting type | Cold plate or pass-through mounting |
| Slots for plug-in modules | 2 |
| Certifications | |
| CE | Yes |
|
UL |
cULus E225616 Power conversion equipment |
| EAC | Yes |
| KC | Yes |
Mains connection
| Network configurations | TT, TN-S, TN-C-S |
| Mains input voltage | 3x 220 to 3x 480 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Installed load | Max. 62 kW |
| Inrush current at 400 VAC | Max. 133 A |
| Switch-on interval | >300 s |
| Max. DC bus capacitance depending on mains voltage | |
| 230 VAC | 34.8 mF |
| 400 VAC | 11.5 mF |
| 480 VAC | 8 mF |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 kHz |
| Integrated line filter per EN 61800-3, category C3 | No |
| Integrated regeneration choke | No |
| Regenerative | Yes |
| Power factor correction (PFC) | Yes |
| Variant | |
| L1, L2, L3, PE | M8 threaded bolts |
| Shield connection | Yes |
| Connection cross section range | |
| Flexible and fine-stranded wires | --- |
| Terminal cable cross section dimension of shield connection | 32 to 50 mm |
DC bus connection
| Voltage | |
| Nominal | 750 VDC |
| Continuous power (supply and regeneration) | 60 kW |
| Reduction of continuous power depending on mains input voltage | |
| Mains input voltage <3x 400 VAC | 150 W/V * (400 V - Mains input voltage) |
| Reduction of continuous power depending on DC bus voltage (UDC) | |
| UDC <750 VDC | 0.08 kW/V |
| Reduction of continuous power depending on switching frequency and mounting type | |
| Switching frequency 5 kHz | |
| Cold plate mounting | 1.3 kW/K (starting at 58°C) |
| Pass-through mounting | In preparation |
| Switching frequency 10 kHz | |
| Cold plate mounting | 0.95 kW/K (starting at 27°C) |
| Pass-through mounting | In preparation |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 6 kW per 1000 m |
| Peak power (supply and regeneration) | 120 kW |
| Power dissipation depending on switching frequency | |
| Switching frequency 5 kHz | [0.065*P²+11.4*P+90] W |
| Switching frequency 10 kHz | [0.22*P²+16.1*P+185] W |
| DC bus capacitance | 1650 µF |
| Protective measures | |
| Overload protection | Yes |
| Short-circuit and ground fault protection | No |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 4.7 µF |
| Max. power consumption | 27 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF... |
| Variant | ACOPOSmulti backplane |
24 VDC Out
| Quantity | 2 |
| Output voltage | |
| DC bus voltage (UDC): 260 to 315 VDC | 25 VDC * (UDC / 315) |
| DC bus voltage (UDC): 315 to 800 VDC | 24 VDC ±6% |
| Fuse protection | 250 mA (slow-blow) electronic, automatic reset |
Filter fan connection
| Output voltage | 24 V +5.8% / -0.1% |
| Continuous current | 4.2 A |
| Max. overcurrent limiting | 10 A |
| Protective measures | |
| Overload protection | No |
| Short-circuit proof | Yes |
| Open-circuit monitoring | No |
| Undervoltage monitoring | No |
Trigger inputs
| Quantity | 2 |
| Circuit | Sink |
| Electrical isolation | |
| Input - Power supply module | Yes |
| Input - Input | Yes |
| Input voltage | |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| Switching threshold | |
| Low | <5 V |
| High | >15 V |
| Input current at nominal voltage | Approx. 10 mA |
| Switching delay | |
| Rising edge | 52 μs ±0.5 μs (digitally filtered) |
| Falling edge | 53 μs ±0.5 μs (digitally filtered) |
| Modulation compared to ground potential | Max. ±38 V |
Electrical properties
| Discharge capacitance | 0.9 µF |
Operating conditions
| Permissible mounting orientations | |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Installation elevation above sea level | |
| Nominal | 0 to 500 m |
| Maximum | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions | |
| Width | 213.5 mm |
| Height | 317 mm |
| Depth | |
| Cold plate | 212 mm |
| Pass-through mounting | 209 mm |
| Weight | Approx. 7.9 kg |
| Module width | 4 |
