Product Details:
Brand Name | ABB |
Model | PM856AK01 |
Product ID | 3BSE066490R1 |
Condition | New |
Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
Country of Origin | Sweden (SE) |
Lead Time | In Stock |
Shipping Port | Xiamen |
Payment | T/T |
Sales Price | Inquiry |
Color | Depends on material |
Warranty | 12 months |
Lead time | 5-8 work days |
Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
24MHz and 16MB
Package including:
- PM856A, CPU
- TP830, Baseplate
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- Battery for memory backup (4943013-6)
- No license included
Description:
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
The base plate of the PM856A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.

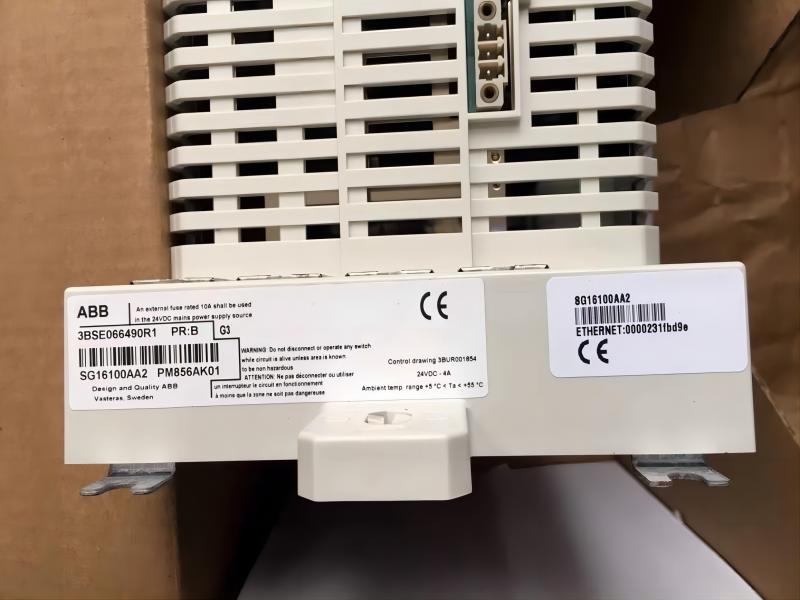

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
Environment and certification Temperature, Operating +5 to +55 °C (+41 to +131 °F) Temperature, Storage -40 to +70 °C (-40 to +158 °F) Temperature changes 3 °C/minutes according to IEC/EN 61131-2 Pollution degree Degree 2 according to IEC/EN 61131-2 Corrosion protection G3 compliant to ISA 71.04 Relative humidity 5 to 95 %, non-condensing Emitted noise < 55 dB (A) Vibration 10 < f < 50Hz: 0.0375 mm amplitude, 50 < f < 150Hz: 0.5 g acceleration, 5 < f < 500Hz: 0.2 g acceleration Rated Isolation Voltage 500 V a.c. Dielectric testvoltage 50 V Protection class IP20 according to EN 60529, IEC 529 Altitude 2000m (6 562 ft) according to IEC/EN 61131-2 Emission & Immunity EN 61000-6-4, EN 61000-6-2 Environmental conditions Industrial CEMark Yes Electrical Safety EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201 Hazardous location cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X Marine certificates ABS, BV, DNV-GL, LR TUV Approval No RoHS compliance EN 50581:2012 WEEE compliance DIRECTIVE/2012/19/EU
