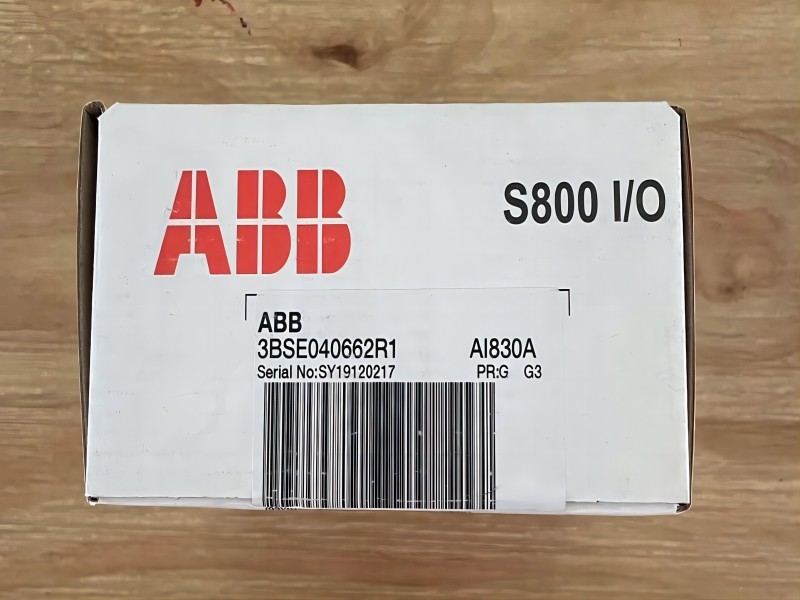

Product Details:
Brand Name | ABB |
Model | AI830A |
Product ID | 3BSE040662R1 |
Condition | New |
Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
Packing Size | 7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
Country of Origin | Estonia |
Lead Time | In Stock |
Shipping Port | Xiamen |
Payment | T/T |
Sales Price | Inquiry |
Color | Depends on material |
Warranty | 12 months |
Lead time | 5-8 work days |
Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
Resolution | See table in S800 Modules and Termination Units, 3BSE020924-xxx |
Isolation | Groupwise isolated from ground |
Error | Error dependent of the field cable resistance: Rerr = R* (0.005 + ∆R/100) Terr°C = Rerr / (R0 * TCR) Terr°F = Terr°C * 1.8 |
Temperature drift | See table in S800 Modules and Termination Units, 3BSE020924-xxx |
Update cycle time | 150 + 95 * (number of active channels) ms |
CMRR, 50Hz, 60Hz | >120 dB (at 10Ω load) |
NMRR, 50Hz, 60Hz | >60 dB |
Rated insulation voltage | 50 V |
Dielectric test voltage | 500 V a.c. |
Power dissipation | 1.6 W |
Current consumption +5 V Modulebus | 70 mA |
Current consumption +24 V Modulebus | 50 mA |
Current consumption +24 V external | 0 |
Front LED’s | F(ault), R(un), W(arning) |
Supervision | Open-circuit, short-circuit, reference channel, internal power supply |
Status indication of supervision | Module Error, Module Warning, Channel error (8) |
CE mark | Yes |
Electrical safety | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
Marine certification | ABS, BV, DNV-GL, LR |
Protection rating | IP20 according to IEC 60529 |
Corrosive atmosphere ISA-S71.04 | G3 |
Climatic operating conditions | 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
Pollution degree | Degree 2, IEC 60664-1 |
Mechanical operating conditions | IEC/EN 61131-2 |
EMC | EN 61000-6-4 and EN 61000-6-2 |
Overvoltage categories | IEC/EN 60664-1, EN 50178 |
Equipment class | Class I according to IEC 61140; (earth protected) |
Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
RoHS compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
WEEE compliance | DIRECTIVE/2012/19/EU |

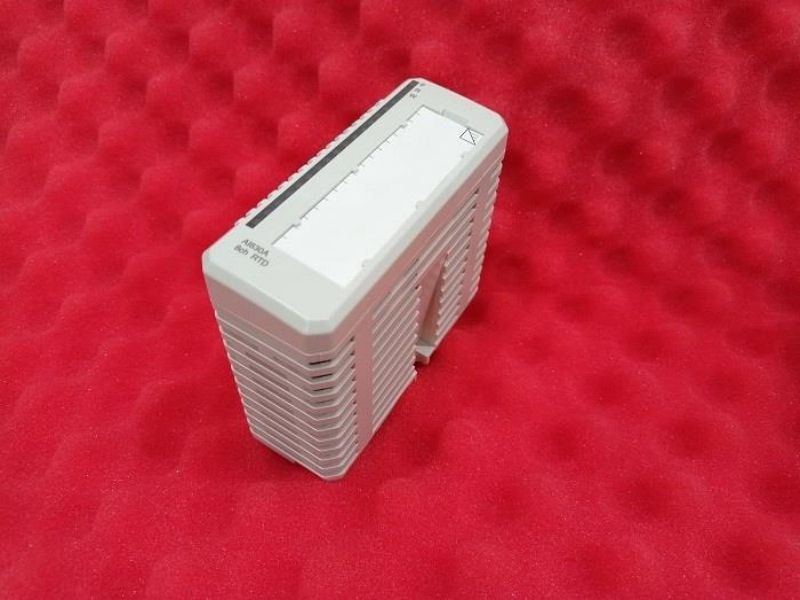

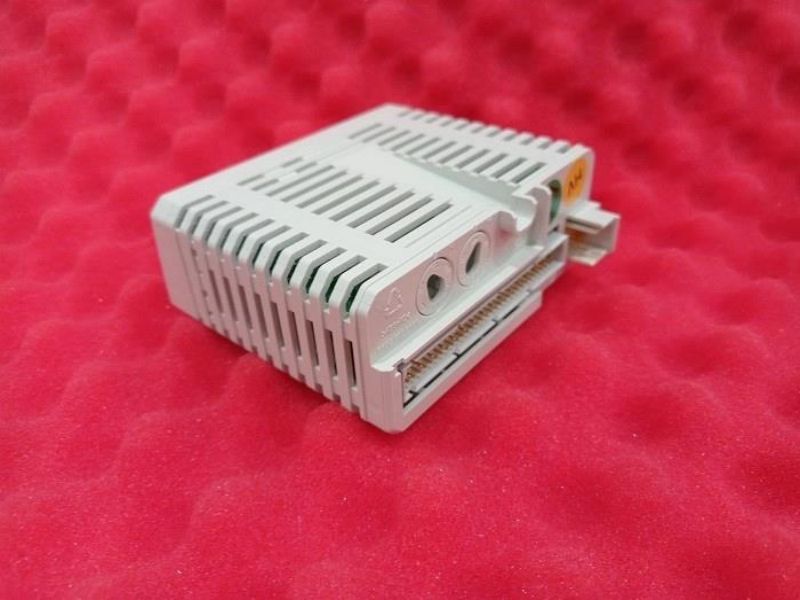

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.
The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.
Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
Features and benefits
- 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
- 3-wire connection to RTDs
- 14 Bit resolution
- Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor
