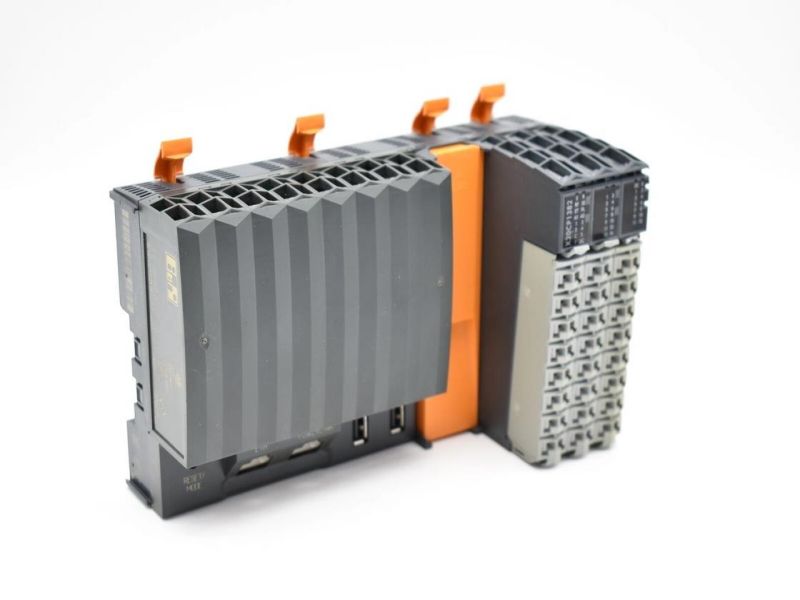

MATERIAL NUMBER:
X20CP1382
DESCRIPTION:
- Intel x86 400 MHz compatible with integrated I/O processor
- Ethernet, POWERLINK with poll-response chaining and onboard USB
- 1 slot for modular interface expansion
- 30 digital inputs/outputs and 2 analog inputs integrated in the device
- 2 GB onboard flash drive
- 256 MB DDR3 SDRAM
- Fanless
- No battery
- Backed-up real-time clock
The X20 Compact CPU series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs. 1 analog input can be used for PT1000 resistance temperature measurement.
The X20CP1382 is equipped with an Intel x86 400 MHz compatible processor, 256 MB RAM and 2 GB built-in flash drive. The FRAM for storing remanent variables has 32 kB available. A fanless and battery-free design ensures maintenance-free operation.
The CPU is equipped with Ethernet, 2x USB and an RS232 interface. In addition, POWERLINK and CAN bus are available as integrated interfaces. If additional fieldbus connections are needed, the CPU can be upgraded with an interface module from the standard X20 product range.
Short description
Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK, 2x USB, 1x X2X Link, 1x CAN bus |
System module | CPU |
General information
B&R ID code | 0xDABB |
Cooling | Fanless |
Status indicators | CPU function, Ethernet, POWERLINK, RS232, CAN bus, CAN bus terminating resistor, CPU power supply, I/O power supply, I/O function per channel |
Diagnostics | |
Outputs | Digital outputs: Yes, using LED status indicator and software (output error status) |
CPU function | Yes, using LED status indicator |
CAN bus data transfer | Yes, using LED status indicator |
RS232 data transfer | Yes, using LED status indicator |
Inputs | Analog inputs: Yes, using LED status indicator and software |
Ethernet | Yes, using LED status indicator |
I/O power supply | Yes, using LED status indicator |
POWERLINK | Yes, using LED status indicator |
Supply voltage monitoring | Yes, using LED status indicator |
Temperature | Yes, using software register |
Terminating resistor | Yes, using LED status indicator |
Support | |
Controller redundancy | No |
ACOPOS support | Yes |
reACTION-capable I/O channels | No |
Visual Components support | Yes |
Power consumption without interface module and USB | 5.5 W |
Power consumption for X2X Link power supply | 0.8 W |
Power consumption | |
Internal I/O | 2.3 W |
Additional power dissipation caused by actuators (resistive) [W] | - |
Type of signal lines | Shielded lines must be used for all high-speed digital inputs/outputs, line length: Max. 20 m |
Certifications | |
CE | Yes |
UKCA | Yes |
ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
UL | cULus E115267 Industrial control equipment |
HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
DNV | Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck) |
LR | ENV1 |
KR | Yes |
ABS | Yes |
EAC | Yes |
CPU and X2X Link power supply
Input voltage | 24 VDC -15% / +20% |
Input current | Max. 1 A |
Fuse | Integrated, cannot be replaced |
Reverse polarity protection | Yes |
X2X Link power supply output
Nominal output power | 2 W |
Parallel connection | Yes |
Redundant operation | Yes |
Input I/O power supply
Input voltage | 24 VDC -15% / +20% |
Fuse | Required line fuse: Max. 10 A, slow-blow |
Output I/O power supply
Nominal output voltage | 24 VDC |
Permissible contact load | 10 A |
Controller
Real-time clock | Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C |
FPU | Yes |
Processor | |
Type | Vx86EX |
Clock frequency | 400 MHz |
L1 cache | |
Data code | 16 kB |
Program code | 16 kB |
L2 cache | 128 kB |
Integrated I/O processor | Processes I/O data points in the background |
Modular interface slots | 1 |
Remanent variables | 32 kB FRAM, retention >10 years |
Shortest task class cycle time | 1 ms |
Typical instruction cycle time | 0.0199 µs |
Standard memory | |
RAM | 256 MB DDR3 SDRAM |
Application memory | |
Type | 2 GB eMMC flash memory |
Data retention | 10 years |
Writable data amount | |
Guaranteed | 40 TB |
Results for 5 years | 21.9 GB/day |
Guaranteed erase/write cycles | 20,000 |
Error-correcting code (ECC) | Yes |
Interfaces
Interface IF1 | |
Signal | RS232 |
Variant | Connection via 16-pin terminal block X20TB1F |
Max. distance | 900 m |
Transfer rate | Max. 115.2 kbit/s |
Interface IF2 | |
Signal | Ethernet |
Variant | 1x RJ45 shielded |
Line length | Max. 100 m between 2 stations (segment length) |
Transfer rate | 10/100 Mbit/s |
Transfer | |
Physical layer | 10BASE-T/100BASE-TX |
Half-duplex | Yes |
Full-duplex | Yes |
Autonegotiation | Yes |
Auto-MDI/MDIX | Yes |
Interface IF3 | |
Fieldbus | POWERLINK managing or controlled node |
Type | Type 4 |
Variant | 1x RJ45 shielded |
Line length | Max. 100 m between 2 stations (segment length) |
Transfer rate | 100 Mbit/s |
Transfer | |
Physical layer | 100BASE-TX |
Half-duplex | Yes |
Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
Autonegotiation | Yes |
Auto-MDI/MDIX | Yes |
Interface IF4 | |
Type | USB 1.1/2.0 |
Variant | Type A |
Max. output current | 0.5 A |
Interface IF5 | |
Type | USB 1.1/2.0 |
Variant | Type A |
Max. output current | 0.1 A |
Interface IF6 | |
Fieldbus | X2X Link master |
Interface IF7 | |
Signal | CAN bus |
Variant | Connection via 16-pin terminal block X20TB1F |
Max. distance | 1000 m |
Transfer rate | Max. 1 Mbit/s |
Terminating resistor | Integrated in module |
Controller | SJA 1000 |
Digital inputs
Quantity | 14 standard inputs, 4 high-speed inputs and 4 mixed channels, configuration as input or output using software |
Nominal voltage | 24 VDC |
Input voltage | 24 VDC -15% / +20% |
Input current at 24 VDC | X1 - Standard inputs: Typ. 3.5 mA X2 - Standard inputs: Typ. 2.68 mA X2 - High-speed inputs: Typ. 3.5 mA X3 - Mixed channels: Typ. 2.68 mA |
Input circuit | Sink |
Input filter | |
Hardware | Standard inputs and mixed channels: ≤200 μs High-speed inputs: ≤2 μs, when used as standard inputs: ≤200 μs |
Software | Default 1 ms, configurable between 0 and 25 ms in 0.1 ms increments |
Connection type | 1-wire connections |
Input resistance | X1 - Standard inputs: 6.8 kΩ X2 - Standard inputs: 8.9 kΩ X2 - High-speed inputs: 6.8 kΩ X3 - Mixed channels: 8.9 kΩ |
Additional functions | X2 - High-speed digital inputs: 2x 250 kHz event counting, 2x AB counter, ABR incremental encoder, direction/frequency, period measurement, gate measurement, differential time measurement, edge counters, edge times |
Switching threshold | |
Low | <5 VDC |
High | >15 VDC |
AB incremental encoder
Quantity | 2 |
Encoder inputs | 24 V, asymmetrical |
Counter size | 32-bit |
Input frequency | Max. 100 kHz |
Evaluation | 4x |
Encoder power supply | Module-internal, max. 300 mA |
Overload characteristics of encoder power supply | Short-circuit proof, overload-proof |
ABR incremental encoder
Quantity | 1 |
Encoder inputs | 24 V, asymmetrical |
Counter size | 32-bit |
Input frequency | Max. 100 kHz |
Evaluation | 4x |
Encoder power supply | Module-internal, max. 300 mA |
Overload characteristics of encoder power supply | Short-circuit proof, overload-proof |
Event counters
Quantity | 2 |
Signal form | Square wave pulse |
Evaluation | 1x |
Input frequency | Max. 250 kHz |
Counter frequency | 250 kHz |
Counter size | 32-bit |
Edge detection / Time measurement
Possible measurements | Period measurement, gate measurement, differential time measurement, edge counter, edge times |
Measurements per module | Each function up to 2x |
Counter size | 32-bit |
Input frequency | Max. 10 kHz |
Timestamp | 1 µs resolution |
Signal form | Square wave pulse |
Analog inputs
Input | ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections |
Input type | Differential input |
Digital converter resolution | |
Voltage | ±12-bit |
Current | 12-bit |
Conversion time | 1 channel enabled: 100 µs 2 channels enabled: 200 µs |
Output format | |
Data type | INT |
Voltage | INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV |
Current | INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 μA |
Input impedance in signal range | |
Voltage | 20 MΩ |
Current | - |
Load | |
Voltage | - |
Current | <300 Ω |
Input protection | Protection against wiring with supply voltage |
Permissible input signal | |
Voltage | Max. ±30 V |
Current | Max. ±50 mA |
Output of digital value during overload | Configurable |
Conversion procedure | SAR |
Input filter | Third-order low-pass filter / Cutoff frequency 1 kHz |
Max. error | |
Voltage | |
Gain | 0.18% (Rev. |
Offset | 0.04% (Rev. |
Current | |
Gain | 0 to 20 mA = 0.15% (Rev. |
Offset | 0 to 20 mA = 0.1% (Rev. |
Max. gain drift | |
Voltage | 0.017 %/°C |
Current | 0 to 20 mA = 0.015 %/°C / 4 to 20 mA = 0.023 %/°C |
Max. offset drift | |
Voltage | 0.008 %/°C |
Current | 0 to 20 mA = 0.008 %/°C / 4 to 20 mA = 0.012 %/°C |
Common-mode rejection | |
DC | 70 dB |
50 Hz | 70 dB |
Common-mode range | ±12 V |
Crosstalk between channels | <-70 dB |
Nonlinearity | |
Voltage | <0.025% |
Current | <0.05% |
Resistance measurement temperature inputs
Quantity | 1 |
Input | Resistance measurement with constant current supply for 2-wire connections |
Digital converter resolution | 13-bit |
Conversion time | Only temperature input enabled: 200 µs Temperature and analog input enabled: 400 µs |
Conversion procedure | SAR |
Output format | INT or UINT for resistance measurement |
Sensor | |
Pt1000 | -200 to 850°C |
Resistance measurement range | 0.1 to 4000 Ω |
Temperature sensor resolution | 1 LSB = 0x0005 = 0.16°C |
Resistance measurement resolution | 1 LSB = 0x0005 = 0.49 Ω |
Input filter | First-order low-pass filter / cutoff frequency 7 Hz |
Sensor standard | EN 60751 |
Common-mode range | 1 V |
Linearization method | Internal |
Measurement current | 1 mA |
Permissible input signal | Short-term max. ±30 V |
Max. error at 25°C | |
Gain | 0.3% (Rev. |
Offset | 0.15% (Rev. |
Max. gain drift | 0.023 %/°C |
Max. offset drift | 0.012%/°C |
Nonlinearity | <0.05% |
Standardized range of values for resistance measurement | 0.1 to 4000.0 Ω |
Crosstalk between channels | <-70 dB |
Common-mode rejection | |
50 Hz | >60 dB |
Temperature sensor normalization | |
Pt1000 | -200 to 850°C |
Digital outputs
Quantity | 4 standard outputs, 4 high-speed outputs and 4 mixed channels, configuration as input or output using software |
Variant | Standard outputs and mixed channels: Current-sourcing FET High-speed outputs: Push-Pull |
Nominal voltage | 24 VDC |
Switching voltage | 24 VDC -15% / +20% |
Nominal output current | Standard outputs and mixed channels: 0.5 A High-speed outputs: 0.2 A |
Total nominal current | Standard outputs and mixed channels: 4 A High-speed outputs: 0.8 A |
Connection type | 1-wire connections |
Output circuit | Standard outputs and mixed channels: Source High-speed outputs: Sink or source |
Output protection | Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads") |
Pulse width modulation | |
Period duration | 5 to 65535 µs corresponds to 200 kHz to 15 Hz |
Pulse duration | 0 to 100%, minimum 2.5 µs |
Resolution for pulse duration | 0.1% of the configured frequency |
Diagnostic status | Standard outputs and mixed channels: Output monitoring with 10 ms delay High-speed outputs: Output monitoring with 10 µs delay |
Leakage current when the output is switched off | Standard outputs and mixed channels: 5 µA High-speed outputs: 25 µA |
RDS(on) | 140 mΩ |
Residual voltage | Standard outputs and mixed channels: <0.1 V at nominal current 0.5 A High-speed outputs: <0.9 V at nominal current 0.1 A |
Peak short-circuit current | Standard outputs and mixed channels: <3 A High-speed outputs: <20 A |
Switch-on in the event of overload shutdown or short-circuit shutdown | Standard outputs and mixed channels: Approx. 10 ms (depends on module temperature) High-speed outputs: No switch-on |
Switching delay | |
0 → 1 | Standard outputs and mixed channels: <300 µs High-speed outputs: <3 µs |
1 → 0 | Standard outputs and mixed channels: <300 µs High-speed outputs: <3 µs |
Switching frequency | |
Resistive load | Standard outputs and mixed channels: Max. 500 Hz High-speed outputs: 50 kHz, max. 200 kHz (see section "Switching frequency derating for high-speed digital outputs") |
Inductive load | See section "Switching inductive loads". |
Braking voltage when switching off inductive loads | Standard outputs and mixed channels: Typ. 45 VDC |
Electrical properties
Electrical isolation | Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC Channel isolated from bus Channel not isolated from channel or PLC |
Operating conditions
Mounting orientation | |
Horizontal | Yes |
Vertical | Yes |
Installation elevation above sea level | |
0 to 2000 m | No limitation |
>2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
Degree of protection per EN 60529 | IP20 |
Ambient conditions
Temperature | |
Operation | |
Horizontal mounting orientation | -25 to 60°C |
Vertical mounting orientation | -25 to 50°C |
Derating | See section "Switching frequency derating for high-speed digital outputs". |
Storage | -40 to 85°C |
Transport | -40 to 85°C |
Relative humidity | |
Operation | 5 to 95%, non-condensing |
Storage | 5 to 95%, non-condensing |
Transport | 5 to 95%, non-condensing |
Mechanical properties
Note | X20 end cover plate (right) included in delivery 3 X20 terminal blocks (16-pin) included in delivery Interface module slot cover included in delivery |
Dimensions | |
Width | 164 mm |
Height | 99 mm |
Depth | 75 mm |
Weight | 310 g |
Main products: spare parts modules of PLC and DCS systems of world-famous brands
① Allen Bradley (American AB) series products
② Schneider series products
③ General Electric series products
④ Westinghouse series products
⑤ Siemens (Siemens series products), Siemens, Siemens SIMATIC, Siemens CNC system, etc.
⑥ Sales of ABB robots FANUC Robots,YASKAWA Robots,Mitsubishi Robots
⑦ Westinghouse: ovation system, WDPF system, MAX1000 system spare parts.
⑧ Invensys Foxboro: I / a series system, FBM (field input / output module) sequence control, ladder logic control, accident recall processing, digital to analog conversion, input / output signal processing, data communication and processing, etc.
Invensys Triconex: redundant fault-tolerant control system, Zui modern fault-tolerant controller based on triple module redundancy (TMR) structure.
⑨ Bosch Rexroth: indramat, I / O module, PLC controller, drive module, etc.
Shipping Detail:
1.For the in stock items,we will send the order out within 3days after receive the payment.
2.we can shipping all over the world via DHL,UPS,Fedex and EMS.The packaging is very strong. If you have any special needs,please notify me.
3.You are expected to receive the item about 7 days after we send out.
Support From Us:
1.100% New Original Factory Sealed
2.Best price
3.Fast Delivery
4.Large in stock
Company Information:
XIAMEN HANCHENXING TRADING is a supplier for industrial automation spare parts.We specialize in PLC module, DCS card pieces, ESD system card pieces, vibration monitoring system card pieces, steam turbine control system module, gas generator spare parts. We have established the relationship with famouse PLC DCS product maintenance service providers in the world.
Our products are widely used in CNC machinery and metallurgy, oil and gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronics manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment / environmental protection, municipal engineering, Heating, energy, transmission and distribution industries.
We are professional, honest and looking forward to friendly cooperation with you!
