English
MATERIAL NUMBER:

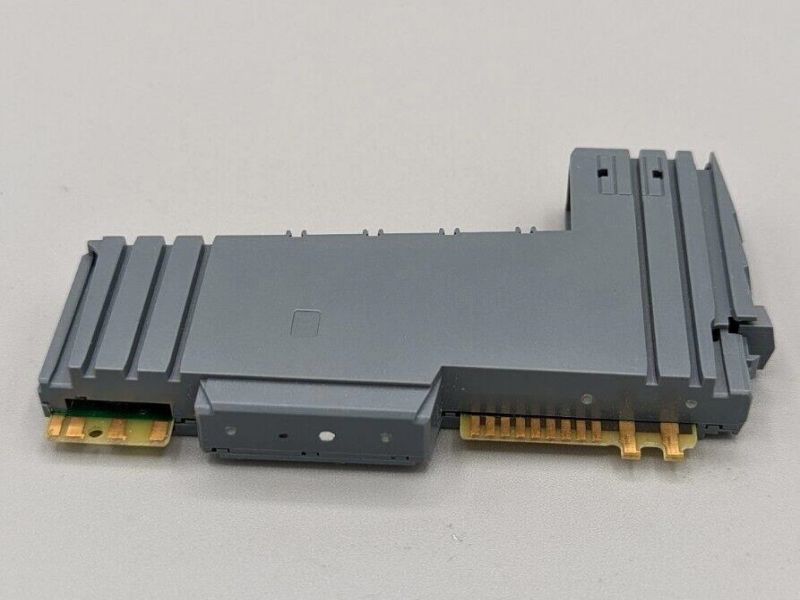

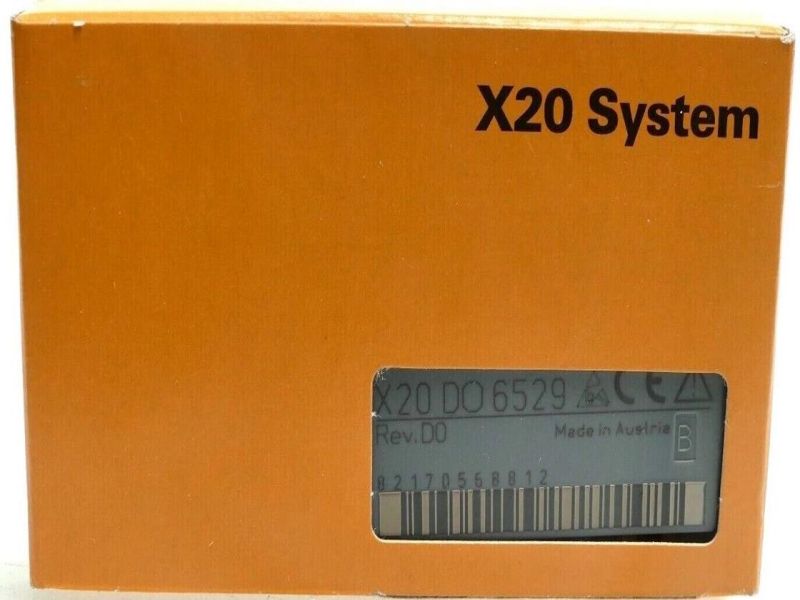

X20DO6529
DESCRIPTION:
- 6 digital outputs
- Relay module for 115 VAC
- 6 normally open contacts
- Single-channel isolated outputs
The module is equipped with 6 relay outputs.
Short description
| I/O module | 6 digital outputs 30 VDC / 115 VAC, outputs single-channel isolated |
General information
| B&R ID code | 0x2019 |
| Status indicators | I/O function per channel, operating state, module status |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Outputs | Yes, using LED status indicator |
| Power consumption | |
| Bus | 1.1 W |
| Internal I/O | - |
| Additional power dissipation caused by actuators (resistive) [W] | +0.45 |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck) |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| EAC | Yes |
| KC | Yes |
Digital outputs
| Variant | Relay / Normally open contact Channels are single-channel isolated. |
| Nominal voltage | 30 VDC / 115 VAC |
| Max. voltage | 125 VAC |
| Switching voltage | Max. 110 VDC / 125 VAC |
| Rated frequency | DC / 45 to 63 Hz |
| Nominal output current | 1 A at 30 VDC / 0.5 A at 115 VAC |
| Total nominal current | 6 A at 30 VDC / 3 A at 115 VAC |
| Actuator power supply | External |
| Inrush current | Max. 2 A (per channel) |
| Contact resistance | 75 mΩ at 6 VDC / 1 A |
| Switching delay | |
| 0 → 1 | ≤4 ms |
| 1 → 0 | ≤4 ms |
| Insulation voltages | |
| Channel - Bus | Tested at 1500 VAC |
| Channel - Channel | Tested at 1000 VAC |
| Service life | |
| Electrical | Min. 100 x 10³ ops. |
| Mechanical | Min. 50 x 106ops. (3 Hz) |
| Switching capacity | |
| Minimum | 0.01 mA / 10 mV DC |
| Maximum | 30 W / 62.5 VA |
| Protective circuit | |
| Internal | None |
| External | |
| AC | RC combination or VDR |
| DC | Inverse diode, RC combination or VDR |
Electrical properties
| Electrical isolation | Channel isolated from channel, bus and I/O power supply |
Operating conditions
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately. |
| Pitch | 12.5+0.2mm |
